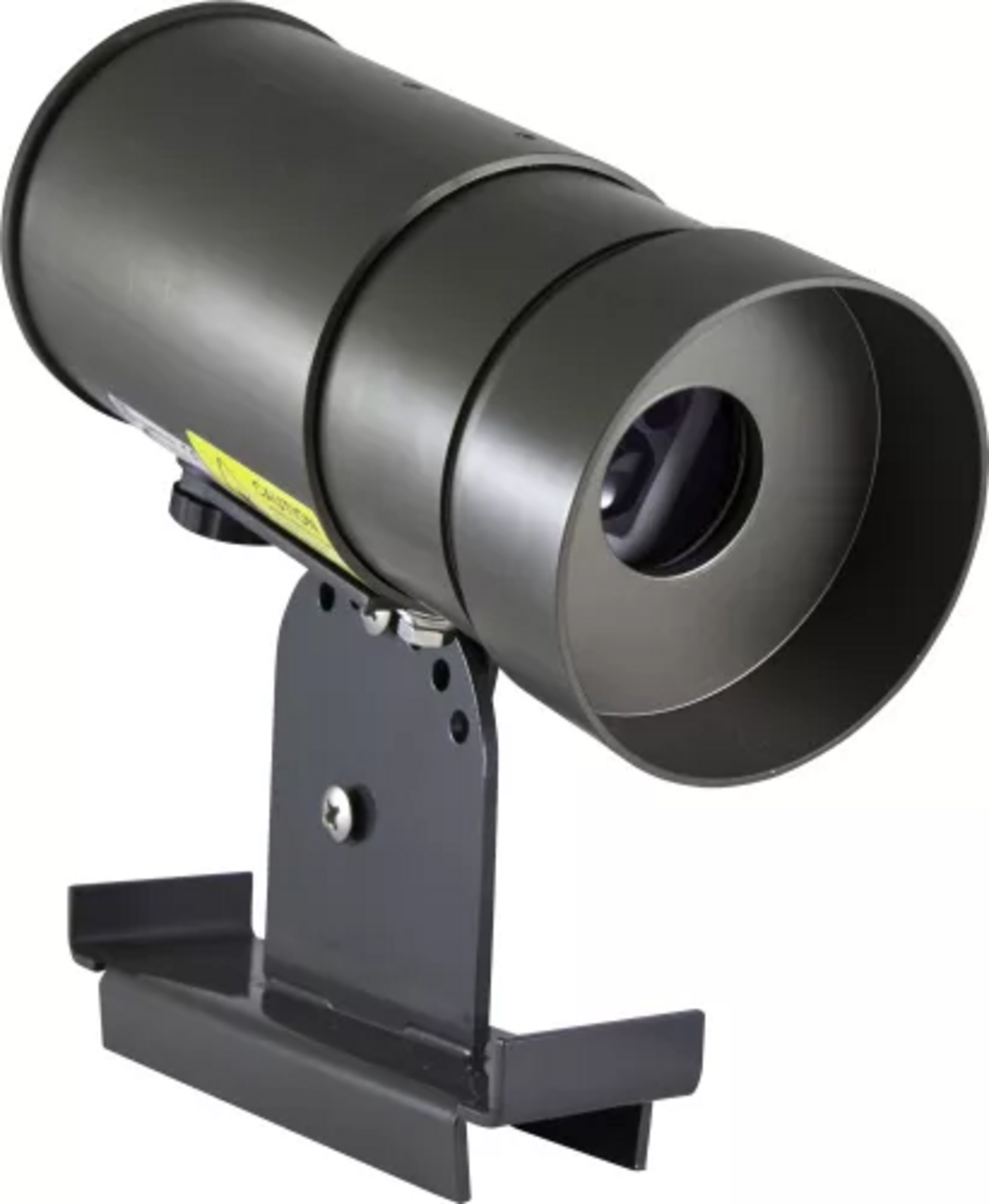

Snow depth sensor SDMS40
Multipoint scanning laser snow depth sensor.
- Supplier: Campbell
- Power supply: 12 to 15 VDC capable of supplying up to 2 A continuously
- Signal output: SDI-12, RS-232
- Range(s):
- Target area diameter: 30 to 200 cm depending on the height of the installation
- Half-angle: 6°
- Number of scanning points: 36
- Measurement range: < 10 m
- Gage pointing angle: 0 to 45° from vertical
- Accuracies:
- Accuracy: ± 3 mm
- Resolution: 1 mm
- Operating temperatures: -40 °C/50 °C
- Quantity: 1
- Use(s):
- Measurement of snow depth on the ground
- System(s):
